KINS' RED LT

Precision Perfected AND Performance Defined

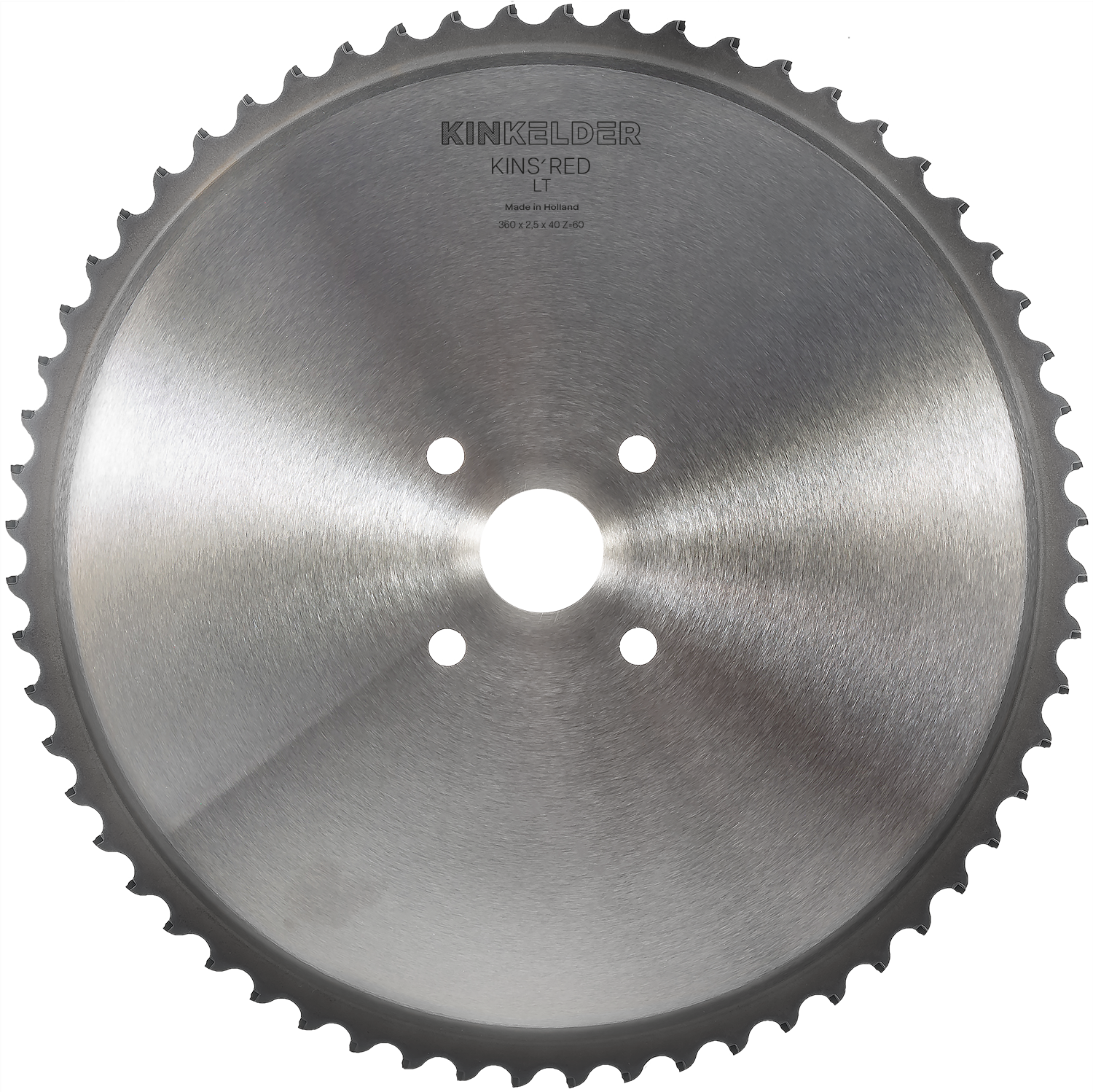

Introducing the KINS’ RED LT saw blade, precision-crafted for cutting solid steel with low tensile strengths ranging from 400 to 750 N/mm² and a carbon content below 0.60%. This saw blade is your key to achieving a smooth cutting surface and high output on a variety of sawing machines.

Read more Show less
  • Low Tensile

  • Medium Tensile

  • Cutting Speed

  • Blade Life

  • Tight Tolerance

DESIGNED FOR A WIDE RANGE OF SOLID CUTTING APPLICATIONS

With suggested cutting speeds between 100 - 280 m/min and a tooth load between 0.05 - 0.10 mm/tooth, KINS’ RED LT delivers outstanding performance with every cut. Versatile and purpose-built for a wide range of solid cutting applications, it's the best choice for industries like steel service centers, forging operations, automotive and truck manufacturing, windmill production, and machinery.

Elevate your cutting process with KINS’ RED LT – precision, speed, high output and lower costs per cut.

The advantages of KINS’ RED LT

  • Specifically developed for cutting low tensile carbon solid steel
  • Smooth cutting surface
  • New saw body design
  • Best blade performance when cutting lower tensile strength materials

Applications suitable to cut steel bars

  • Cutting low tensile carbon steel (< 0.60%) solids
  • Suggested cutting speed: 100 – 280 m/min
  • Tooth load ranging from: 0.05 – 0.10 mm/tooth

Perfect match to cut low carbon solid steel

KINS’ RED LT is the perfect match for cutting low carbon solid steel with low (to medium) tensile strengths between 400 - 750 N/mm². This saw blade excels in a diverse array of solid cutting applications such as:

  • Hydraulic cylinders
  • Bearing housing and wheels
  • Wheel hubs
  • Gear wheels
  • Mechanical parts
  • Bolts, nuts, fittings, couplings, flanges, hubs
  • Axles, drive shafts, crankshafts

Typical steel grades for KINS’ RED LT

  • Mild steel
  • Plain carbon steel
  • Non alloyed steel
  • Free cutting steel
  • Low carbon steel
  • Structural steel
  • Medium carbon steel

TYPICAL MACHINES

Manufacturer Machine type

Amada

CM(B) series up to CM(B)150

Noritake

NCS-series up to NCS150

Behringer / Eisele

HCS-series up to HCS150

Mega

CS-series up to CS150

Wagner / Trennjäger

SPA-series up to SPA150

Kasto

(vario-/grip-) speed C-series up to speed C15

Everising

P-series up to P150

Nishisimax

NHC-series up to NHC150

Ficep

S-series up to S50

Tsune

TJ/TK-series up to TJ/TK150

Exactcut

TAC series up to TAC155

Danobat / Plantool

VCS/QCS series

STANDARD RANGE KINS’ RED LT

Diameter (mm) Kerf (mm) No. of teeth (Z)
250 2,0 / 1,7 60 / 72 / 80 / 100
285 2,0 / 1,7 60 / 72 / 100 / 120
315 2,4 / 2,0  2,6 / 2,25 60
315 2,3 / 2,0  2,5 / 2,25 72 / 80
315 2,3 / 2,0 100 / 120
350 2,8 / 2,5 60
350 2,7 / 2,5 80 / 100 / 120
360 2,6 / 2,25 60
360 2,5 / 2,25 80 / 100 / 120 / 140
370 2,4 / 2,0 60
370 2,3 / 2,0 80 / 100 / 120
380 2,6 / 2,25 60
380 2,5 / 2,25 80 / 100 / 120
400 2,7 / 2,5 60 / 80 / 100
420 2,7 / 2,25 50 / 60 / 80 / 100
425 2,7 / 2,25 50 / 60 / 80 / 100
460 2,8 / 2,25 50
460 2,7 / 2,25 60 / 80 / 100 / 120
480 2,7 / 2,25 50 / 60 / 80 / 100
500 3,5 / 3,0 80
520 3,8 / 3,2 50
520 3,0 / 2,5 72 / 80
560 3,8 / 3,2 60
560 3,0 / 2,5 72 / 80
560 3,7 / 3,2 100
560 3,0 / 2,5 120
580 3,2 / 2,7 60 / 72 / 80 / 100
630 3,2 / 2,7 60 / 72 / 80 / 100
650 3,7 / 3,2 80 / 130
750 3,8 / 3,2 60 / 72 / 80 / 100

KINS' RED LT is formerly known as: CX7
